1.    Feature

2.    USB interface chip block diagram

3.    Camera module Mechanical Drawing

4.    Lens SPEC.

5.    Connect pin description

6.    Electrical SPEC.

1. Features

. Image Sensor part

Silicon Optronics, Inc JX- H42 CMOS Image sensor

1296 X 816 pixel (MAX)

1280 X 720 pixel / 30 Fps / USB

3.0um X 3.0um pixel size

1/4 inch optical format

Sensitivity   3300 mV/Lux.sec

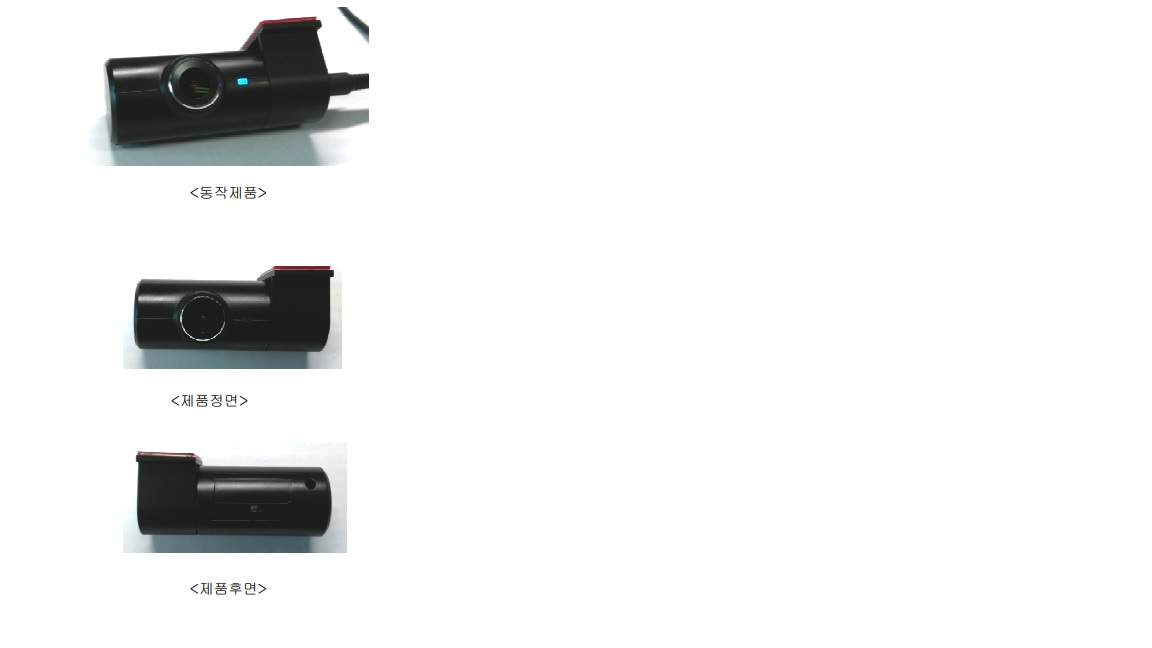

. Module Size 66.8(W) x 26.11(L) x 27.91(H)

. Interface part (USB interface)

Sonix Technology SN9C291B

Include ISP support

H.264 Main profile 4.1

Built-in H.264 encoder support USB Video Class MPEG2-TS
  USB Video Class 1.1 / 1.5 compliant

USB Audio Class 1.0 compliant
  USB 2.0 High Speed device controller

 . Lens part

Focal Length - 2.7mm+/-5%

Angle of view : 120˚(D) x 90˚(H) x 70˚(V)

Relative Aperture 2.0 +/- 0.4mm

Elements : 4 glass

Lens dimension  : M12 x 0.5P

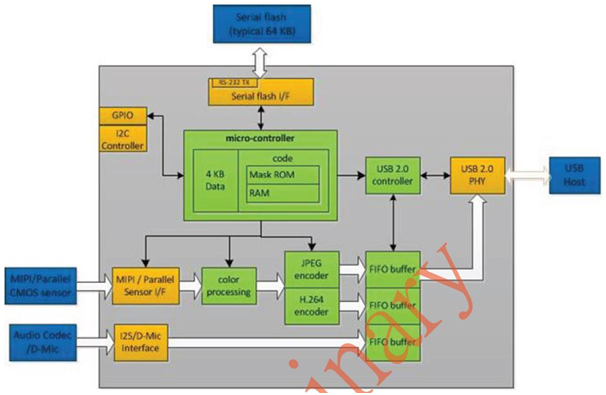

2. Block Diagram
