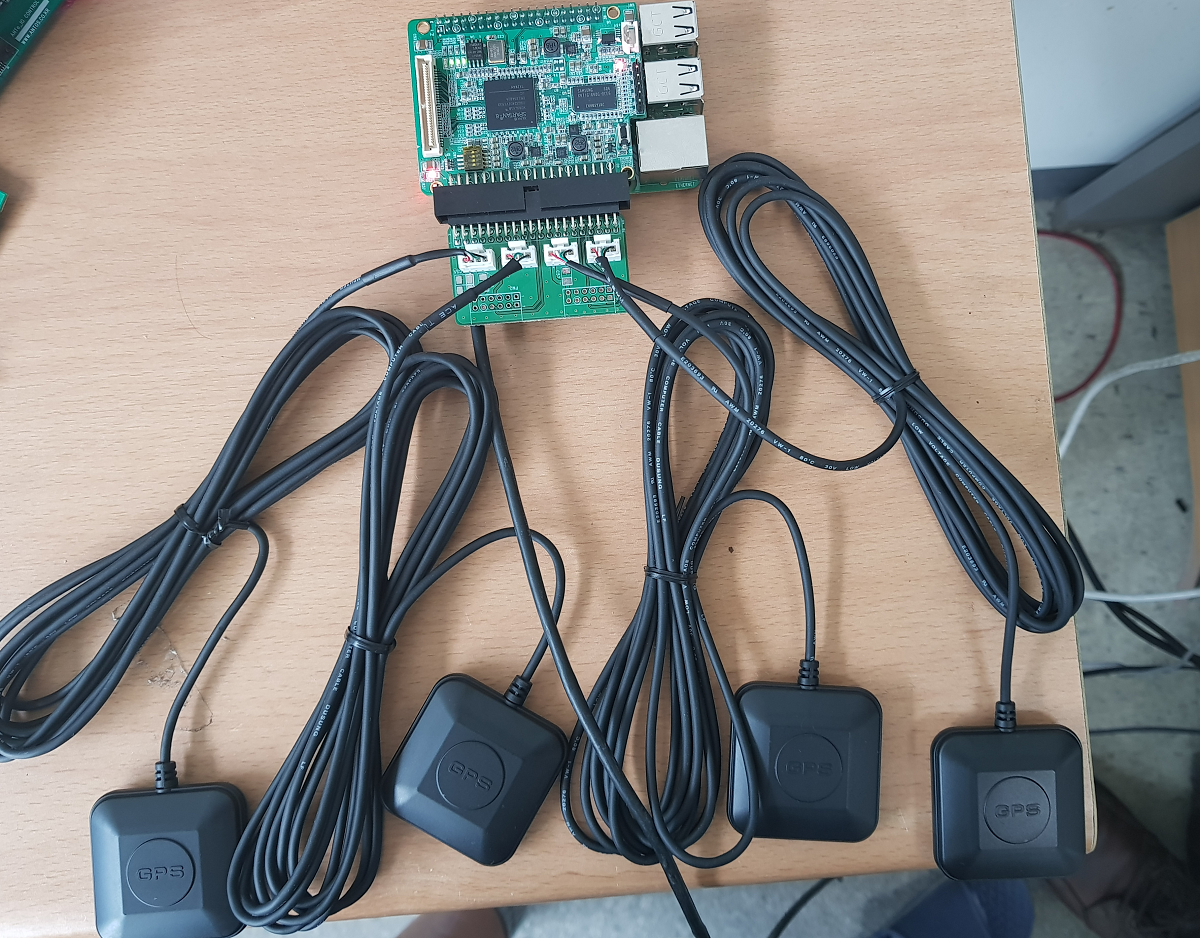

4 채널 GPS 모듈을 연결한 사진

테스트 코드

#include
#include
#include
#include
#include
#include
#include
#include
#include

#include

#include

#include
#include
#include

#define BCM2708_PERI_BASE������ 0x3f000000
#define GPIO_BASE�������������� (BCM2708_PERI_BASE + 0x200000)
#define GET_GPIO(g) ���(*(GPIO_base+13)&(1<#define GPIO_OUT_10_19() ��*(GPIO_base+1)� = 0x012024� // gpio 19

#define BLOCK_SIZE (4 * 1024)
#define PAGE_SIZE (4 * 1024)

#define� INC_MENT� 0x40
#define NINC_MENT 0x00

#define PWM_REG_BASE 0x20

#define� UART_BASE_ADDR 0x10

//================================================
// uarrt reg address
#define� UART_CH_0_TX� (0x10 | 0x00)
#define� UART_CH_0_RX� (0x10 | 0x00)

#define� UART_CH_0_SPEED�� (0x10 | 0x03)
#define� UART_CH_0_FF_CNT� (0x10 | 0x02)
#define� UART_CH_0_FF_RST� (0x10 | 0x01)

#define� UART_CH_1_TX (0x10 | 0x04)
#define� UART_CH_1_RX (0x10 | 0x04)

#define� UART_CH_1_SPEED�� (0x10 | 0x04 | 0x03)
#define� UART_CH_1_FF_CNT� (0x10 | 0x04 | 0x02)
#define� UART_CH_1_FF_RST� (0x10 | 0x04 | 0x01)

#define� UART_CH_2_TX (0x10 | 0x08)
#define� UART_CH_2_RX (0x10 | 0x08)

#define� UART_CH_2_SPEED�� (0x10 | 0x08 | 0x03)
#define� UART_CH_2_FF_CNT� (0x10 | 0x08 | 0x02)
#define� UART_CH_2_FF_RST� (0x10 | 0x08 | 0x01)

#define� UART_CH_3_TX (0x10 | 0x0c)
#define� UART_CH_3_RX (0x10 | 0x0c)

#define� UART_CH_3_SPEED�� (0x10 | 0x0C | 0x03)
#define� UART_CH_3_FF_CNT� (0x10 | 0x0C | 0x02)
#define� UART_CH_3_FF_RST� (0x10 | 0x0C | 0x01)

#define� UART_CH_3_ID� (0x10 | 0x0C | 0x03)

//int� mem_fd;
void *gpio_map;

int fd_mpu6090;

int fd;

// I/O access
volatile unsigned *GPIO_base; // addr * 4 => addr 0,1,2.....

#define ARRAY_SIZE(a) (sizeof(a) / sizeof((a)[0]))

void uart_received_test(void);

static void pabort(const char *s)
{
�perror(s);
�abort();
}

static const char *device = "/dev/spidev0.0";
static uint8_t mode = SPI_MODE_0;�� // MODE 1 EDGE , MODE 0 FALLING
static uint8_t mode1 = SPI_MODE_1 ; //1
static uint8_t bits = 8;
static uint32_t speed = 50000000;
static uint16_t delay;

void setup_io();
void spi_init(int file);
void bmp280_driver() ;
int mpu6090_process(void);

int data_buff[128] ;

// spi port word write function

int write_word(int file, int addr, int data)
{
�int ret;
�uint8_t tx[4] ;
�tx[0] = (uint8_t)addr&0xff� & 0x7f;
�tx[2] = (uint8_t)((data&0xff00) >> 8);
�tx[3] = (uint8_t)(data&0x00ff) ;
�uint8_t rx[ARRAY_SIZE(tx)] = {0, };

�struct spi_ioc_transfer tr = {
��.tx_buf = (unsigned long)tx,
��.rx_buf = (unsigned long)rx,
��.len = ARRAY_SIZE(tx),
��.delay_usecs = delay,
��.speed_hz = speed,
��.bits_per_word = bits,
�};

�ret = ioctl(file, SPI_IOC_MESSAGE(1), &tr);

�return ret;
}

int write_16bit_word(int file,int inc, int length,int addr, int *data)
{
�int ret;
�int i,j=0;
�uint8_t tx[128] ;
������ int inc_bit;

�inc_bit = inc &0x40;
�tx[0] = (uint8_t)length&0x3f | inc_bit;� // 16BIT MODE
�tx[1] = (uint8_t)(addr&0xff);

�for(i=0;i��tx[j+2] = (uint8_t)(data[i]>>8) & 0xff ; //uppper 16
��tx[j+1+2] = (uint8_t)(data[i]) & 0xff ;� // lower 8
��j=j+2;
�}

�uint8_t rx[ARRAY_SIZE(tx)] = {0, };

�struct spi_ioc_transfer tr = {
��.tx_buf = (unsigned long)tx,
��.rx_buf = (unsigned long)rx,
��.len �=� (length*2)+2,
��.delay_usecs = delay,
��.speed_hz = speed,
��.bits_per_word = bits,
�};

�ret = ioctl(file, SPI_IOC_MESSAGE(1), &tr);

�return ret;
}

// spi port word read function
int read_word(int file, int addr,int *data)
{

�int ret;
�uint8_t tx[4] ;
�uint8_t rx[ARRAY_SIZE(tx)] = {0, };
�tx[0] = (uint8_t)addr&0xff | 0x80;

�struct spi_ioc_transfer tr = {
��.tx_buf = (unsigned long)tx,
��.rx_buf = (unsigned long)rx,
��.len = ARRAY_SIZE(tx),
��.delay_usecs = delay,
��.speed_hz = speed,
��.bits_per_word = bits,
�};

�ret = ioctl(file, SPI_IOC_MESSAGE(1), &tr);

�*data = (rx[2]<<8) | rx[3];

�return ret;
}

int read_16bit_word(int file, int inc, int length, int addr,int *data)
{

�int ret;
�uint8_t tx[128] ;
�uint8_t rx[ARRAY_SIZE(tx)] = {0, };
�int data_sum;
��� int i,j=0;

��� int inc_bit;
�inc_bit = inc & 0x40;
�tx[0] = (uint8_t)length&0x3f | inc_bit | 0x80 ; // 16bit read mode mode
�tx[1] = (uint8_t)(addr&0xff);

�struct spi_ioc_transfer tr = {
��.tx_buf = (unsigned long)tx,
��.rx_buf = (unsigned long)rx,
��.len �=� (length*2)+2,
��.delay_usecs = delay,
��.speed_hz = speed,
��.bits_per_word = bits,
�};

�ret = ioctl(file, SPI_IOC_MESSAGE(1), &tr);

�for(i=0;i��data[i] = ((rx[j+2])<<8) | rx[j+1+2];
��j=j+2;

�}

�return ret;
}

int PWM_ch_write(int file, int channel ,int reg, int data)
{
�int ret = 0;

�int addr;
�addr = PWM_REG_BASE | channel & 0x1c | reg & 0x03;

�write_word(file, addr, data);
�return ret;
}

int BMP_write(int file, int addr,int reg)
{
�int ret;
�write_word(file, addr, reg);
�return 0;
}

int BMP_read(int file, int addr,int reg, int *data)
{
�int ret;
�int loop_count = 0;
�write_word(file, addr, reg);
�while(1){
��//usleep(100);
��ret = GET_GPIO(19);
��if(ret == 0) break;
��if(loop_count++ > 0xfff){
���printf("bmp280 error: %x \n",loop_count);
���return -1;
��}
�}
�read_word(file, addr,data);
�return 0;
}

int BMP_Data_write(int file, char *reg, int length)
{
�int ret,i;
�int addr = 0x20;
�int reg_inc;

�reg_inc = (reg[0]<<8) | reg[1];
���� write_word(file, addr, reg_inc & 0x7fff);

�return 0;
}

void BMP280_Init(int file)
{
�int addr = 0x22 ; // clock diver
�int reg�= 0x2;
��� BMP_write(file, addr,reg);
��� usleep(100);
��� addr = 0x20;�� // bmp280 fifo reg
��� write_word(file, addr, 0xe000� & 0x7fff); // bmp internal reg reset

}

int BMP_Data_read(int file, char reg, char *data,int length)
{
�int ret;
�int i;
�int addr = 0x20;
�int w_data[1];

�� int reg_inc;
�� reg_inc = (int)reg ;
�� for(i=0;i

��ret = BMP_read(file, addr, reg_inc<<8, &w_data[0] );
��data[i]= (char)w_data[0];
��reg_inc++;
��if(ret == -1)
���return ret;
��//usleep(100);
�}
��� return i;

}

void uart_speed_set(void)
{
//�data_buff[0] = 175000000/(9600*16*2); //1139 175MHZ 115200//9 -> 926000;
�data_buff[0] = 148000000/(9600*16); //1139 175MHZ 115200//9 -> 926000;
�write_16bit_word(fd,� 0x00, 0x01, UART_CH_0_SPEED,data_buff);
� write_16bit_word(fd,� 0x00, 0x01, UART_CH_1_SPEED,data_buff);
� write_16bit_word(fd,� 0x00, 0x01, UART_CH_2_SPEED,data_buff);
� write_16bit_word(fd,� 0x00, 0x01, UART_CH_3_SPEED,data_buff);
}
void uart_all_fifo_reset()
{

�data_buff[0] = 0;

�write_16bit_word(fd,��� 0x00, 0x01, UART_CH_0_FF_RST,data_buff);
� write_16bit_word(fd,� 0x00, 0x01, UART_CH_1_FF_RST,data_buff);
� write_16bit_word(fd,� 0x00, 0x01, UART_CH_2_FF_RST,data_buff);
� write_16bit_word(fd,� 0x00, 0x01, UART_CH_3_FF_RST,data_buff);

}

void uart_ch_0_send (int data)
{
��data_buff[0] = 0x0055;

�write_16bit_word(fd,� 0x00, 0x01, UART_CH_0_TX ,data_buff� );

}

void uart_ch_1_send(int data)
{
��data_buff[0] = 0x00aa;

�write_16bit_word(fd,� 0x00, 0x01, UART_CH_1_TX ,data_buff);

}

void uart_ch_2_send(int data)
{
��data_buff[0] = 0x0055;

�write_16bit_word(fd,� 0x00, 0x01, UART_CH_2_TX ,data_buff);

}

void uart_ch_3_send(int data)
{
��data_buff[0] = 0x00aa;

�write_16bit_word(fd,� 0x00, 0x01, UART_CH_3_TX ,data_buff);

}

//======================================

int main(int argc, char *argv[])
{
�int ret = 0;

�int send = 0;
�int BMP_ID_data;
�int BMP_STS_data;
�int fpga_data=0;
��� int data_count;
��� int i;

�uint8_t bd_data[10];
�fd = open(device, O_RDWR);
�if (fd < 0) pabort("can't open device");
�
�� spi_init(fd);

�printf("spi mode: %d\n", mode1);
�printf("bits per word: %d\n", bits);
�printf("max speed: %d Hz (%d KHz)\n", speed, speed/1000);
�printf("spi delay: %d\n", delay);

��� uart_speed_set();� // uart clock speed set
�uart_all_fifo_reset();� // uart fifo reset

�read_16bit_word(fd, 0x00 ,0x01 ,UART_CH_3_ID ,data_buff);

�printf("SPI FPGA ID VALUE: %x\n",data_buff[0]);
�while(1){

��uart_received_test();

��//uart_ch_0_send(0x00);
��//uart_ch_1_send(0x00);

��//uart_ch_2_send(0x00);

��//uart_ch_3_send(0x00);

�� �}

�close(fd);

�return ret;
}

void spi_init(int file)
{

�int ret;

�

�ret = ioctl(file, SPI_IOC_WR_MODE, &mode);
�if (ret == -1)
��pabort("can't set spi mode");

�ret = ioctl(file, SPI_IOC_RD_MODE, &mode1);
�if (ret == -1)
��pabort("can't get spi mode");

�
�ret = ioctl(file, SPI_IOC_WR_BITS_PER_WORD, &bits);
�if (ret == -1)
��pabort("can't set bits per word");

�ret = ioctl(file, SPI_IOC_RD_BITS_PER_WORD, &bits);
�if (ret == -1)
��pabort("can't get bits per word");

�
�ret = ioctl(file, SPI_IOC_WR_MAX_SPEED_HZ, &speed);
�if (ret == -1)
��pabort("can't set max speed hz");

�ret = ioctl(file, SPI_IOC_RD_MAX_SPEED_HZ, &speed);
�if (ret == -1)
��pabort("can't get max speed hz");
}

void setup_io()
{
��
�� int� mem_fd;
�� if ((mem_fd = open("/dev/mem", O_RDWR|O_SYNC) ) < 0) {
����� printf("can't open /dev/mem \n");
����� exit(-1);
�� }

��
�� gpio_map = mmap(
����� NULL,������������ //Any adddress in our space will do
����� BLOCK_SIZE,������ //Map length
����� PROT_READ|PROT_WRITE,// Enable reading & writting to mapped memory
����� MAP_SHARED,������ //Shared with other processes
����� mem_fd,���������� //File to map
����� GPIO_BASE�������� //Offset to GPIO peripheral
�� );

�� close(mem_fd); //No need to keep mem_fd open after mmap

�� if (gpio_map == MAP_FAILED) {
����� printf("mmap error %d\n", (int)gpio_map);//errno also set!
����� exit(-1);
�� }

�� // Always use volatile pointer!
�� GPIO_base = (volatile unsigned *)gpio_map;

} // setup_io

void uart_received_test(void)
{

�� int data_count,i;
�uart_speed_set();� // uart clock speed set
�uart_all_fifo_reset();� // uart fifo reset

�read_16bit_word(fd, 0x00 ,0x01 ,UART_CH_3_ID ,data_buff);

�printf("SPI FPGA ID VALUE: %x\n",data_buff[0]);
�while(1){
��read_16bit_word(fd, 0x00 ,0x01 ,UART_CH_0_FF_CNT ,&data_count);
��//usleep(1);
��if((data_count & 0xff) > 0){

���read_16bit_word(fd, 0x00 ,data_count ,UART_CH_0_RX ,data_buff);
���for(i=0;i

//���printf(" uart 0 received count:%x\n",data_count);

��}
��//usleep(10);

��//usleep(50);
��read_16bit_word(fd, 0x00 ,0x01 ,UART_CH_1_FF_CNT ,&data_count);
��if((data_count & 0xff) > 10){

���read_16bit_word(fd, 0x00 ,data_count ,UART_CH_1_RX ,data_buff);
���for(i=0;i

���//printf(" uart 1 received count:%x\n",data_count);

��}

��//usleep(50);
���� read_16bit_word(fd, 0x00 ,0x01 ,UART_CH_2_FF_CNT ,&data_count);
��if((data_count & 0xff) > 10){

���read_16bit_word(fd, 0x00 ,data_count,UART_CH_2_RX ,data_buff);
���for(i=0;i

���//printf(" uart 2 received count:%x\n",data_count);
��}
��//usleep(50);
��read_16bit_word(fd, 0x00 ,0x01 ,UART_CH_3_FF_CNT ,&data_count);
��if((data_count & 0xff) > 10){

���read_16bit_word(fd, 0x00 ,data_count ,UART_CH_3_RX ,data_buff);
���for(i=0;i

���//printf(" uart 3 received count:%x\n",data_count);
��}

��usleep(5000);
�}
}
